紅點系列

---

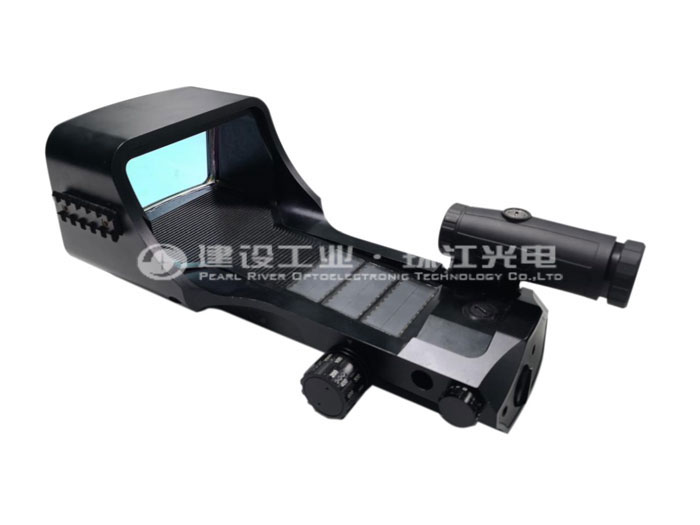

大視場反射式紅點瞄準鏡

---

裝備概述

大視場反射式紅點瞄準鏡采用標準皮卡汀尼接口,適配于14.5毫米轉管機槍、CS/LM5型12.7毫米轉管機槍和CS/LM14型0.50英寸車載轉管機槍上,具有對不同距離目標進行快速打擊覆蓋的獨特能力。

Summary

The reflective red spot sight with large field of view adopts the standard Picatinny interface, which is adapted to 14.5 mm rotary gun, CS/LM5 model 12.7 mm rotary gun and CS/LM14 model 0.50 inch vehicle-borne rotary gun. It has the unique ability to quickly attack and cover targets of different distances.

技術參數

倍 率	1×
視差	≤2′
紅點尺寸/圓圈尺寸(MOA)	2/65
視場	96m/200m
增倍鏡	4×
重量	≤3.2千克

Main specifications

Magnification	1×
Parallax	≤2′
Red Spot Size/Circle Size (mil)	2/65
Field of view	96m/200m
Multiplier sight	4×
Weight	≤3.2Kg

---
